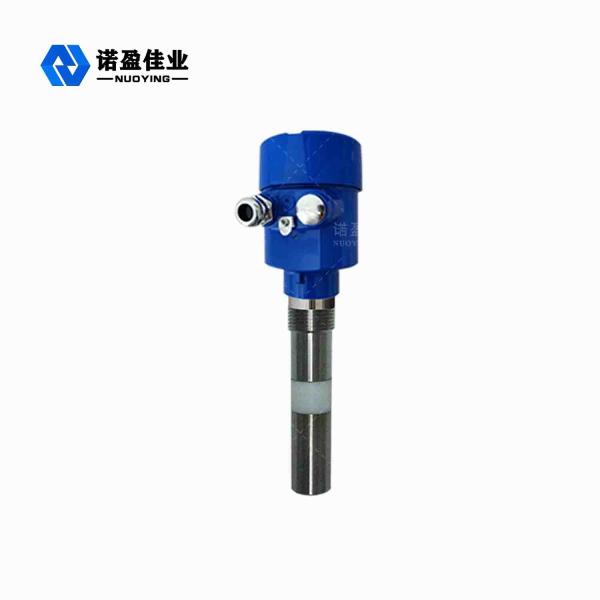

Highly Intelligent Chemical Rf Capacities Liquid Level Switch
Rf Capacities Liquid Level Switch Discription
NYDR capacities liquid level switch is a highly intelligent liquid level measurement product, which overcomes the inconvenience brought to customers by the low alarm accuracy and complex adjustment steps of the previous measurement methods. RF capacities switches are widely used in chemical industry, metallurgy, petroleum, machinery, food,food stuff and other industries.
Rf Capacities Liquid Level Switch Design Feature
◎This product adopts intelligent microprocessor components and differential measurement technology, which can measure water, sewage, mud, and other liquids, especially strong corrosive media effectively and accurately, and can dynamically compensate for environmental changes and hanging materials;
◎This product can be used in the built-in auxiliary electrode of the non-metallic tank sensor, and there is no need to add an electrode in the container;
◎The operation is very simple, you only need to adjust the corresponding sensitivity knob according to the medium, and the surge delay filter can be used;
Rf Capacities Liquid Level Switch Technical Parameter
| Typical application |
Liquid level control |
| Product model |
NYDR |
| Probe material |
304, PTFE (optional) |
| Probe length |
200mm(length can be customized according to site conditions) |
| Power supply |
24VDC, 220VAC |
| Process temperature |
-40~+130℃, -40~+260℃ |
| Process pressure |
-0.1~1.0MPa |
