NH93420-A Digital Pressure Sensor Transmitter Stainless Steel LCD Display

Name: NH93420A Digital Pressure Sensor Transmitter Stainless Steel LCD Display
Brand: NUOYING
Price: 99 USD

China NH93420-A Digital Pressure Sensor Transmitter Stainless Steel LCD Display wholesale

Brand Name : NUOYING

Model Number : NH93420-A

Certification : CE, SIL, ATEX

Place of Origin : Xi'an,Shaanxi,China

MOQ : 1pcs

Price : $99 to $240/pcs

Payment Terms : T/T

Supply Ability : 1000pcs per month

Delivery Time : 5-7 working day

Packaging Details : 40*30*30cm

Grade : Industrial

Warranty : 12 months

Customized support : OEM, ODM

Applications : Liquid, corrosive liquid

Process Temperature : -25~+125℃(> + 125 ℃ can be customized)

Power supply : 24VDC (± 5%)

Procedure linkage : screw thread,flange(selectable)

Housing material : Aluminum, stainless steel(optional)

Protection/explosion class : Exia ll CT6(optional)

Filling fluid : Silicone oil, inert oil (optional)

Measuring range : Upper limit URL

Diaphragm material : 316L, ceramic diaphragm Case material: aluminum, stainless steel

Signal output : 4...20mA/HART/RS485/Modbus...

Contact Now

NH93420 Digital Pressure Sensor Transmitter Stainless Steel LCD Display

NH93420 Pressure Transmitter

Products Description

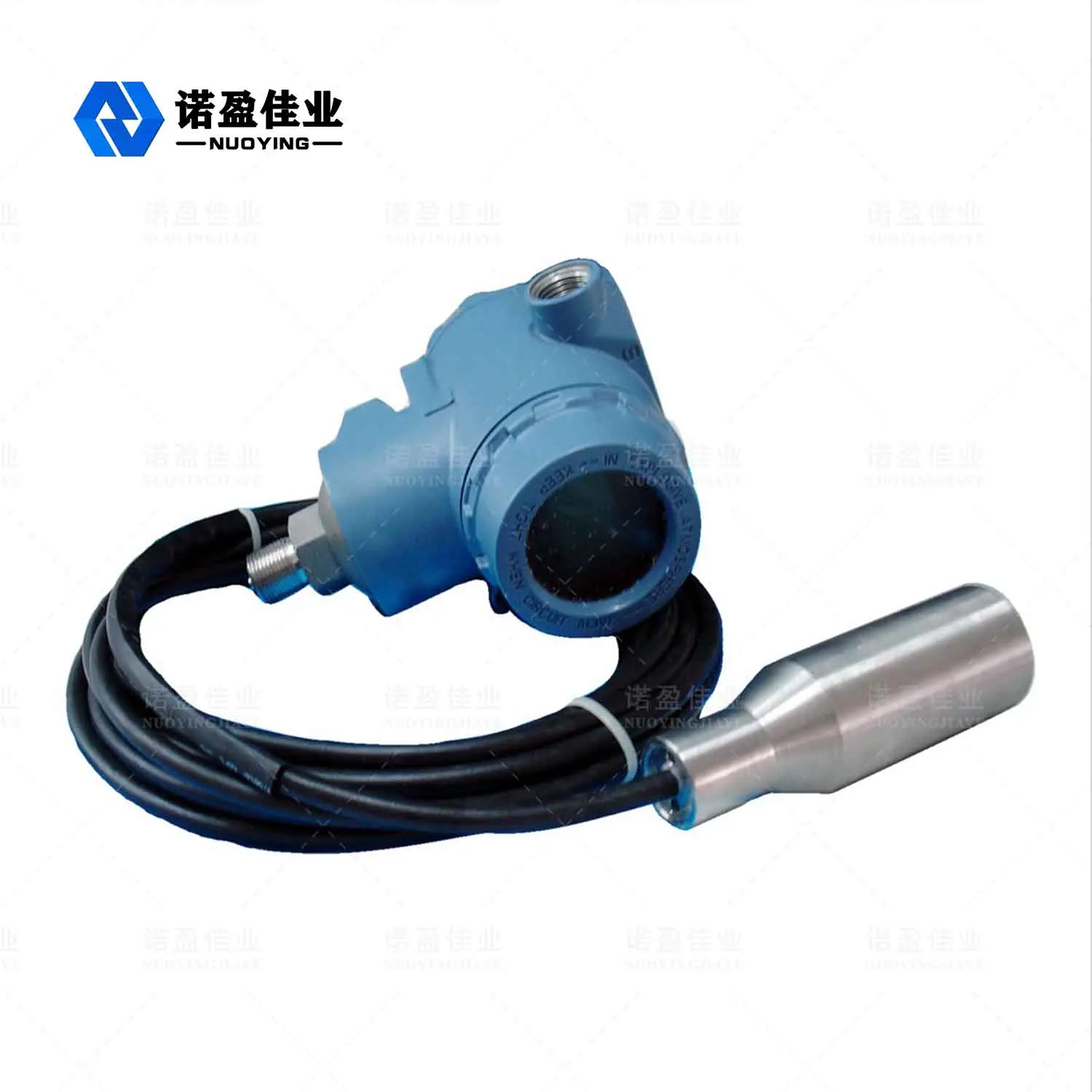

NH93420 Liquid Level Transmitter Pressure Sensor Transmitter

NH93420 series liquid level transmitter is an all-stainless steel design, all-sealed diving solid-state piezoresistive liquid level measurement instrument. The high stability, high reliability piezoresistive pressure sensor, high precision intelligent transmitter processing circuit, precision digital temperature compensation technology and nonlinear correction technology are used in this product. The liquid level signal of the measured liquid is converted into a standard electrical signal output. Waterproof cable and shell sealed connection, pipe in the cable, can be used in liquid for a long time. The integrated structure and standardized signal output provide convenience for field use and automatic control. . The product is small in size, light in weight, easy to install and easy to use. It is suitable for the measurement and control of liquid level in the fields of petroleum, chemical industry, power plant, urban water supply and water temperature exploration.

Product Parameters

NH93420-A Digital Pressure Sensor Transmitter Stainless Steel LCD Display

Typical application	Liquid, corrosive liquid
Diaphragm material	316L, ceramic diaphragm (optional) Case material: aluminum, stainless steel (optional)
Measuring range	Upper limit URL
Power supply	24VDC (± 5%)
Process connection	thread flange mounting (optional)
Medium temperature	-25~+125℃(> + 125 ℃ can be customized)
Explosion-proof grade	Exia II CT5 Exd IIBT5 (optional)

Product details

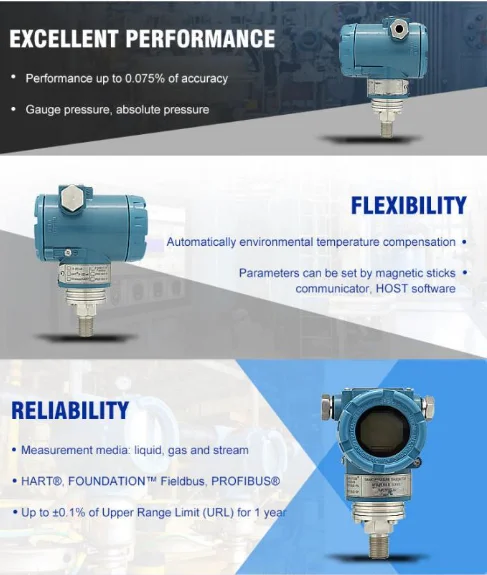

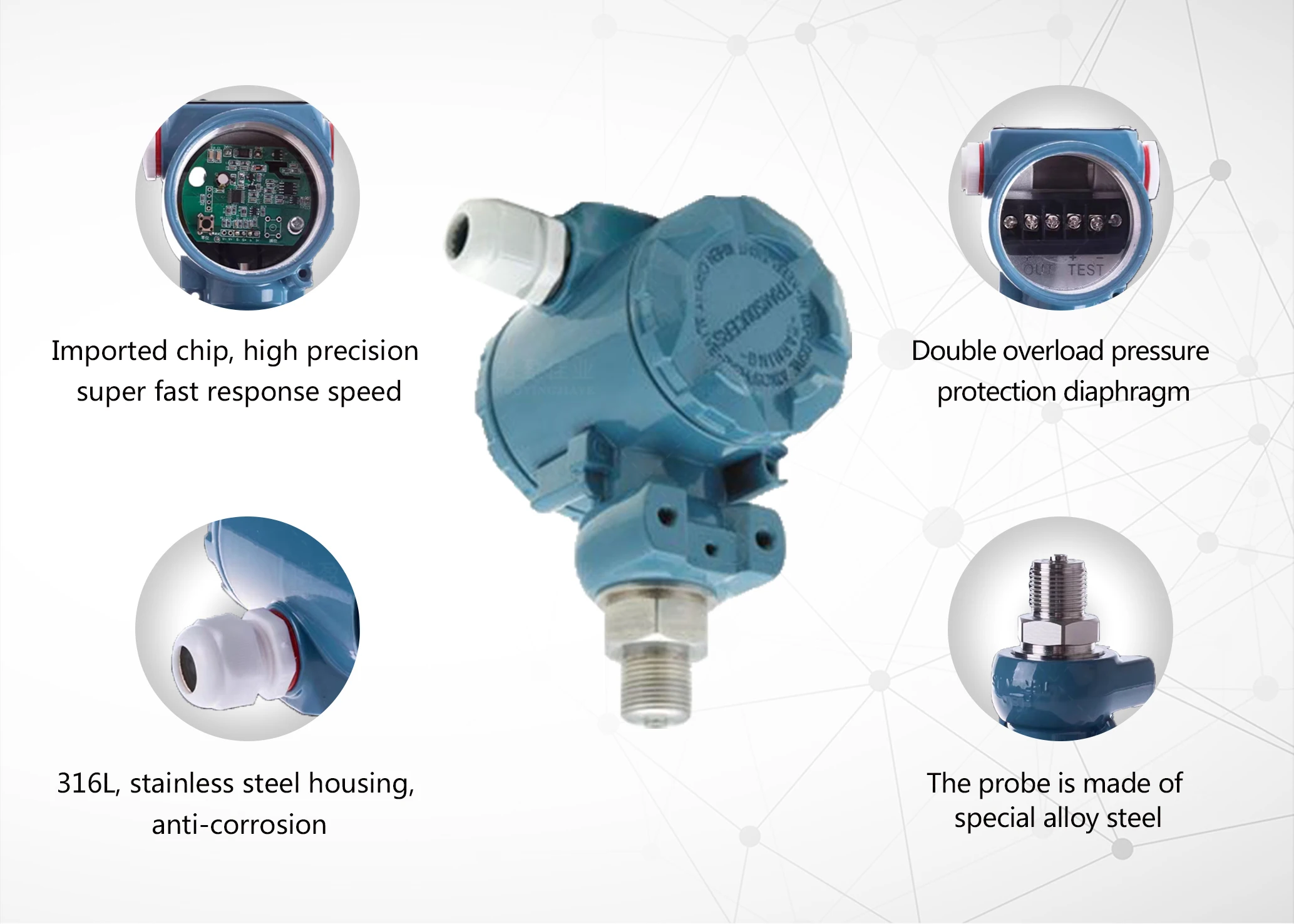

Product feature

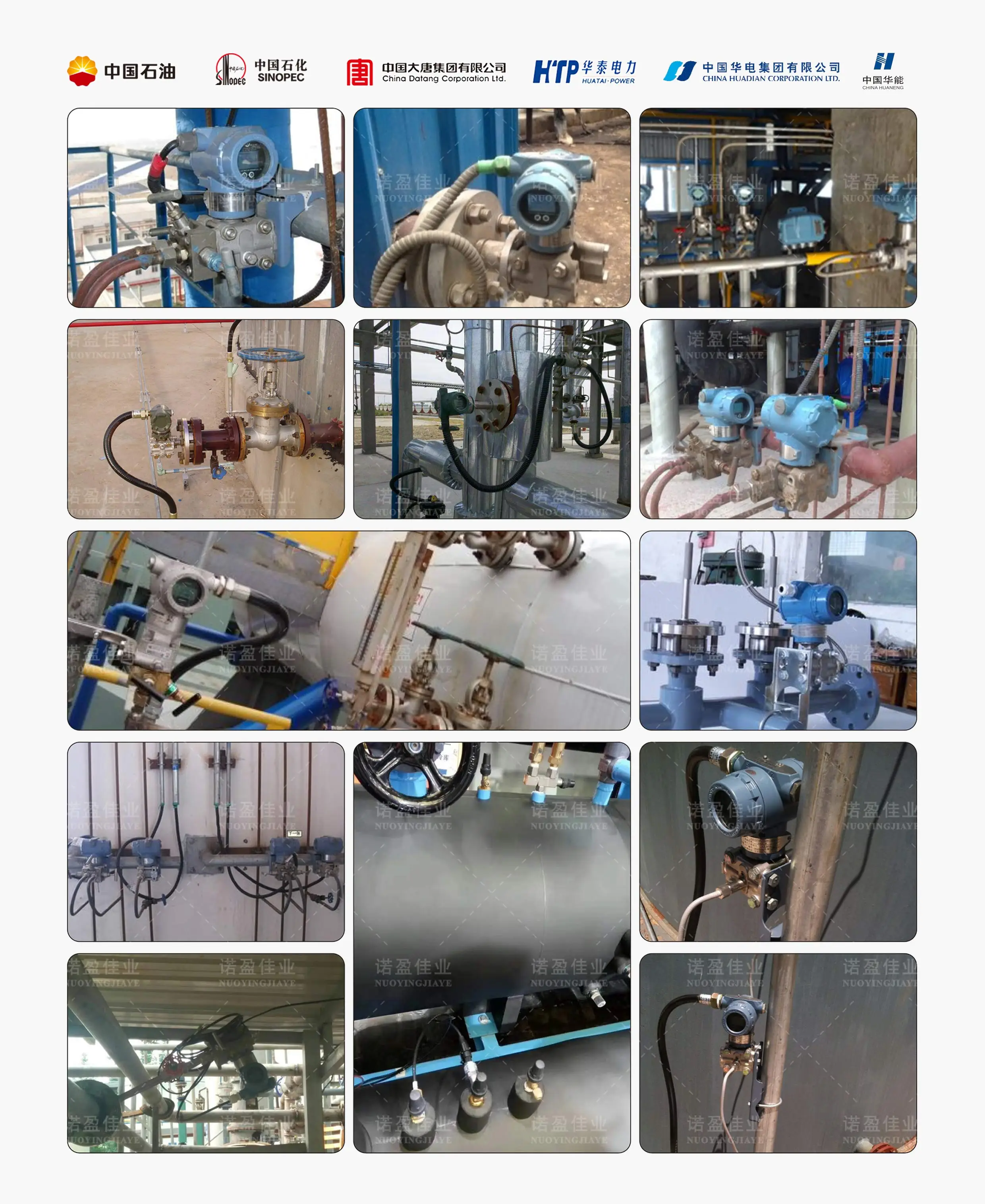

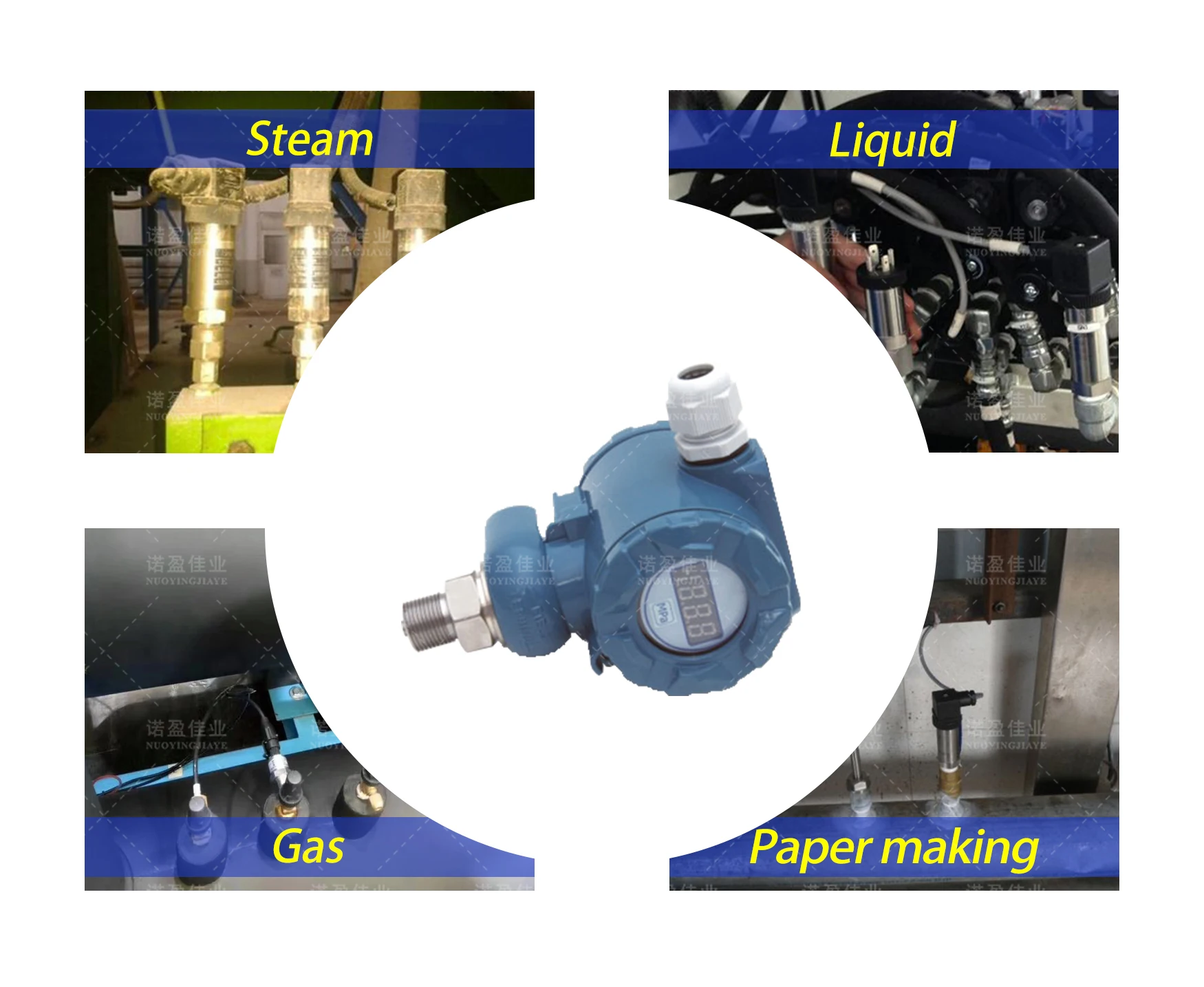

Working condition

Cooperative customers

Certifications

NH93420-A Digital Pressure Sensor Transmitter Stainless Steel LCD Display Images
